The NPF family of MEAN WELL has been rapidly adopted by LED indoor lighting market since unveiled, especially the D-Type model which has the built-in 3 in 1 dimming function has earned high appreciation from the panel luminaires system designers. In order to meet the growing trend of intelligent lighting system design nowadays, MEAN WELL is pleased to unveil a new upgrade version of NPF-120D — the 120W NPF-120D-BE series with 12V@200mA auxiliary output.

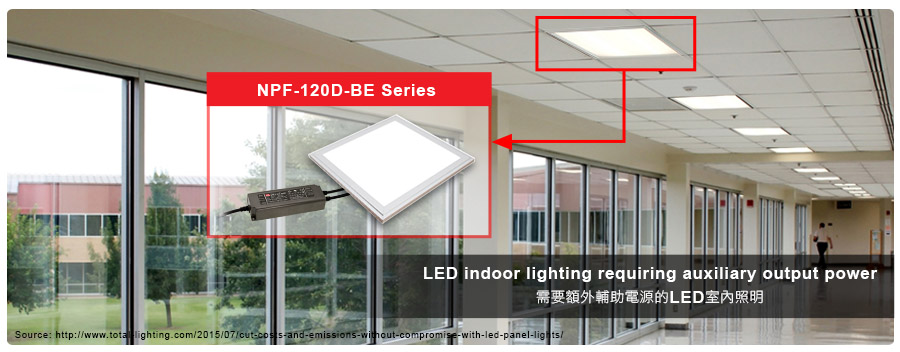

This product has the same features as the NPF-120D series, offering complete models from 12V to 54V, higher than 0.9 power factor, less than 500ms setup time, lower than 0.5W standby power consumption, possessing IP67 protection level and is Type “HL” LED power. The 12V @ 200mA auxiliary output of this upgrade content is suitable to be the power source for intelligent lighting sensor and controllers that can avoid extra wiring complexity. NPF-120D-BE is thus really suitable for panel lighting systems with sensors or controllers, other LED indoor lighting and LED commercial lighting applications which require auxiliary output power.

  • 90~305VAC full range input
  • Built-in active PFC function
  • Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries
  • Standby power consumption <0.5W
  • High efficiency up to 89%
  • Fanless design, cooling by free air convection
  • Working temperature :-40~+90℃ (Tcase)
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Class II power unit (no FG)
  • Approvals: UL/CUL/ENEC/CB/CE
  • Dimension (L x W x H): 191 x 63 x 37.5 mm
  • 5 years warranty
